Merhaba,
PowerCli ile Cluster Utilization isimli bu makalemde sizlere vCenter Server üzerinde bulunan cluster’ınızın kullanım oranını hesaplattırabileceğinzi bir script paylaşacağım. Daha önce kapasite raporu ve snapshot raporu ile ilgili bazı script’ler paylaşmıştım. Bu yazılarıma aşağıdaki linkten ulaşabilirsiniz.
Aşağıdaki script’i çalıştırdığınızda isterseniz SMTP alanlarını doldurarak kendinize mail olarak gelmesini sağlayabilirsiniz.
@”
===============================================================================
Title: Cluster-Utilization.ps1
Description: List cluster report on all VMware ESX/ESXi servers as well as VM’s managed by Virtual Center.
Requirements: Windows Powershell and the VI Toolkit
Usage: .\Cluster-Utilization.ps1
Author: Tayfun Deger
===============================================================================
“@
Get-Module -Name VMware* -ListAvailable | Import-Module
Add-PSSnapin VMware.VimAutomation.Core -ErrorAction SilentlyContinue
Connect-VIServer vCenter-IP -User vCenter-Username -Password vCenter-Şifre
$report = @()
$clusterName = “*”
$report = foreach($cluster in Get-Cluster -Name $clusterName){
$esx = $cluster | Get-VMHost
$ds = Get-Datastore -VMHost $esx | where {$_.Type -eq “VMFS” -and $_.Extensiondata.Summary.MultipleHostAccess}
$rp = Get-View $cluster.ExtensionData.ResourcePool
New-Object PSObject -Property @{
VCname = $cluster.Uid.Split(‘:@’)[1] DCname = (Get-Datacenter -Cluster $cluster).Name
Clustername = $cluster.Name
“Number of hosts” = $esx.Count
“Total Processors” = ($esx | measure -InputObject {$_.Extensiondata.Summary.Hardware.NumCpuPkgs} -Sum).Sum
“Total Cores” = ($esx | measure -InputObject {$_.Extensiondata.Summary.Hardware.NumCpuCores} -Sum).Sum
“Current CPU Failover Capacity” = $cluster.Extensiondata.Summary.AdmissionControlInfo.CurrentCpuFailoverResourcesPercent
“Current Memory Failover Capacity” = $cluster.Extensiondata.Summary.AdmissionControlInfo.CurrentMemoryFailoverResourcesPercent
“Configured Failover Capacity” = $cluster.Extensiondata.ConfigurationEx.DasConfig.FailoverLevel
“Migration Automation Level” = $cluster.Extensiondata.ConfigurationEx.DrsConfig.DefaultVmBehavior
“DRS Recommendations” = &{$result = $cluster.Extensiondata.Recommendation | %{$_.Reason};if($result){[string]::Join(‘,’,$result)}}
“DRS Faults” = &{$result = $cluster.Extensiondata.drsFault | %{$_.Reason};if($result){[string]::Join(‘,’,$result)}}
“Migration Threshold” = $cluster.Extensiondata.ConfigurationEx.DrsConfig.VmotionRate
“target hosts load standard deviation” = “NA”
“Current host load standard deviation” = “NA”
“Total Physical Memory (MB)” = ($esx | Measure-Object -Property MemoryTotalMB -Sum).Sum
“Configured Memory MB” = ($esx | Measure-Object -Property MemoryUsageMB -Sum).Sum
“Available Memroy (MB)” = ($esx | Measure-Object -InputObject {$_.MemoryTotalMB – $_.MemoryUsageMB} -Sum).Sum
“Total CPU (Mhz)” = ($esx | Measure-Object -Property CpuTotalMhz -Sum).Sum
“Configured CPU (Mhz)” = ($esx | Measure-Object -Property CpuUsageMhz -Sum).Sum
“Available CPU (Mhz)” = ($esx | Measure-Object -InputObject {$_.CpuTotalMhz – $_.CpuUsageMhz} -Sum).Sum
“Total Disk Space (MB)” = ($ds | where {$_.Type -eq “VMFS”} | Measure-Object -Property CapacityMB -Sum).Sum
“Configured Disk Space (MB)” = ($ds | Measure-Object -InputObject {$_.CapacityMB – $_.FreeSpaceMB} -Sum).Sum
“Available Disk Space (MB)” = ($ds | Measure-Object -Property FreeSpaceMB -Sum).Sum
“CPU Total Capacity” = $rp.Runtime.Cpu.MaxUsage
“CPU Reserved Capacity” = $rp.Runtime.Cpu.ReservationUsed
“CPU Available Capacity” = $rp.Runtime.Cpu.MaxUsage – $rp.Runtime.Cpu.ReservationUsed
“Memory Total Capacity” = $rp.Runtime.Memory.MaxUsage
“Memory Reserved Capacity” = $rp.Runtime.Memory.ReservationUsed
“Memory Available Capacity” = $rp.Runtime.Memory.MaxUsage – $rp.Runtime.Memory.ReservationUsed
}
}

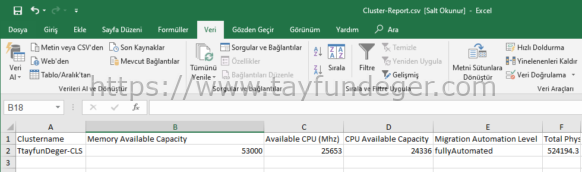

$report | Export-Csv “C:\Cluster-Report.csv” -NoTypeInformation -UseCulture
###########Define Variables########
$fromaddress = “[email protected]”
$toaddress = “[email protected], [email protected]”
# $bccaddress = “[email protected]”
$CCaddress = “[email protected]”
$Subject = “Cluster Utilizasyon Raporu”
$body = “Cluster utilizasyon raporuna ekteki dosyadan ulasabilirsiniz…”
$attachment = “C:\Cluster-Report.csv”
$smtpserver = “SMTP-IP-Adresi”
####################################
$message = new-object System.Net.Mail.MailMessage
$message.From = $fromaddress
$message.To.Add($toaddress)
$message.CC.Add($CCaddress)
# $message.Bcc.Add($bccaddress)
$message.IsBodyHtml = $True
$message.Subject = $Subject
$attach = new-object Net.Mail.Attachment($attachment)
$message.Attachments.Add($attach)
$message.body = $body
$smtp = new-object Net.Mail.SmtpClient($smtpserver)
$smtp.Send($message)
Disconnect-VIServer vCenter-IP -Confirm:$false
[/php]Umarım faydalı olmuştur.
İyi çalışmalar.
