ESXi 6 Upgrade Error NSX

Merhaba,

Ortamınızda bir NSX var ve bu, ESXi host’larınıza connect durumda ise ESXi 6.0 upgrade‘i yaparken sorun yaşayabilirsiniz. NSX ile ilgili yazmış olduğum yazıları eğer incelediyseniz orada esxi host’lara VIB paketleri yüklendiğinden bahsetmiştim. Bunlara aşağıdaki link’lerden ulaşabilirsiniz.

https://www.tayfundeger.com/vmware-nsx-part-6-preparing-cluster-and-hosts.html

https://www.tayfundeger.com/vmware-nsx-part-7-verify-nsx-vibs.html

Ben ESXi update ve upgrade işlemlerini genellikle SSH üzerinden gerçekleştiriyorum tabi siz bu VIB hatasını ESXi’i cd’den boot edip upgrade etmek istediğinizdede alacaksınız.

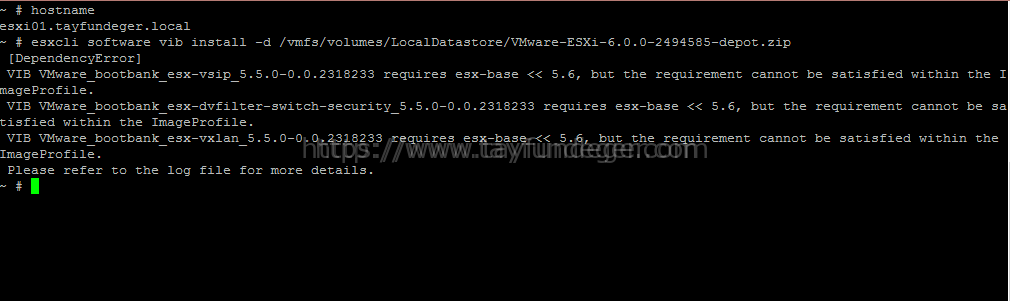

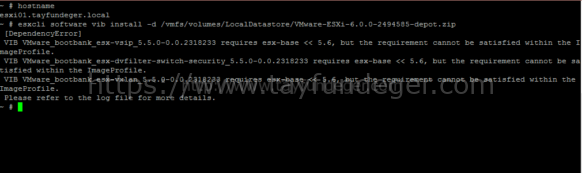

hata

[DependencyError] VIB VMware_bootbank_esx-vsip_5.5.0-0.0.2318233 requires esx-base << 5.6, but the requirement cannot be satisfied within the ImageProfile.
VIB VMware_bootbank_esx-dvfilter-switch-security_5.5.0-0.0.2318233 requires esx-base << 5.6, but the requirement cannot be satisfied within the ImageProfile.
VIB VMware_bootbank_esx-vxlan_5.5.0-0.0.2318233 requires esx-base << 5.6, but the requirement cannot be satisfied within the ImageProfile.

Eğer yukarıdaki gibi bir hata ile karşılaştıysanız öncelikle ESXi host’un üzerinden VIB dosyalarını silmeniz gerekmektedir. ESXi üzerindeki VIB dosyaları silindikten sonra ancak upgrade yapabilirsiniz. Upgrade işleminiz tamamlandıktan sonra NSX tekrar kendi VIB dosyalarını yükleyecektir.

ESXi üzerinden bu VIB dosyalarını silmek için aşağıdaki komutları kullanabilirsiniz.

~ # esxcli software vib remove -n esx-dvfilter-switch-security
Removal Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   Reboot Required: true
   VIBs Installed:
   VIBs Removed: VMware_bootbank_esx-dvfilter-switch-security_5.5.0-0.0.2318233
   VIBs Skipped:

~ # esxcli software vib remove -n esx-vsip
Removal Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   Reboot Required: true
   VIBs Installed:
   VIBs Removed: VMware_bootbank_esx-vsip_5.5.0-0.0.2318233
   VIBs Skipped:

~ # esxcli software vib remove -n esx-vxlan
Removal Result
Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
Reboot Required: true
VIBs Installed:
VIBs Removed: VMware_bootbank_esx-vxlan_5.5.0-0.0.2318233
VIBs Skipped:

Teşekkürler.
